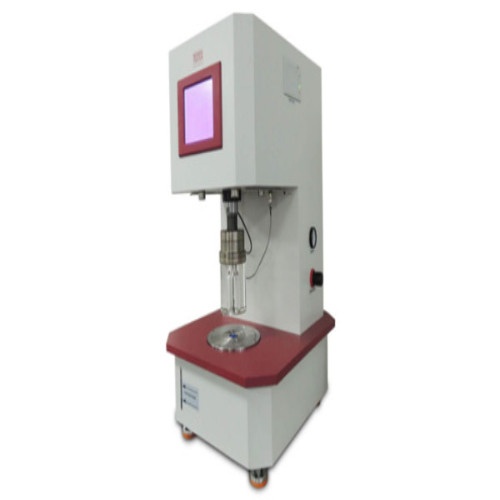

BURSTING STRENGTH TESTER

About BURSTING STRENGTH TESTER

Auto Bursting Strength Tester, to test the bursting strength of paper, woven or knitted fabrics, non-woven, fabric and board by the of hydraulic load under a Bursting tester diaphragm of a specific area.

Digital bursting strength apparatus provides with a digital readout of pressure with peak hold facility, renewable rubber diaphragms. Automatic clamping device with a clear acrylic bell, an LED lamp is equipped for easy observation.

Interchangeable test bells and clamping ring sets 7.3cm2 (30.5mm), 10cm2 (35.7mm), 50cm2 (79.8mm), 100cm2 (112.8mm).

Bursting strength testing machine is provided with three test methods, Constant speed bursting, Certain pressure bursting and Certain extension

Specifications / Features

High-accuracy servo-motor driving system
Automatic-clamping offers firm and reliable clamping
Large colorful touch panel, can be operated without computer
Equipped with memory and printing function, supporting on-line operation.
Resolution 2Kpa
Test Head and Clamp: 50cm2(79.8mm),
7.3cm2(30.5mm), the other sizes are available on request.
